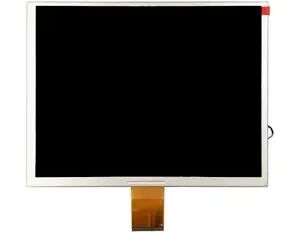

The DT356CA-10.4-LCM is a 10.4-inch color active matrix liquid crystal display (LCD) module. It utilizes amorphous silicon thin-film transistors (a-Si TFT) as the switching devices, resulting in a transmissive type LCD panel.
The module has a resolution of 1024 x 768 pixels and can display 256K/16.7M colors. It achieves a high contrast ratio of 1000:1 (typical) and fast response time of 30ms or less. The wide viewing angles of 80°/80°/80°/80° (right/left/up/down) make it suitable for various applications.
Designed for industrial and medical applications, the DT356CA-10.4-LCM operates within a temperature range of -30°C to 80°C. It features a LVDS interface for video signal transmission and a separate power interface for the backlight. The compact module dimensions of 227.00 x 175.80 x 9.20 mm allow for easy integration into space-constrained devices.
| Item | Description | Unit |
|---|---|---|
| Display Size | 10.4 | inch |
| Display Type | Transmissive, a-Si | – |
| Active Area (HxV) | 210.432 (H) x 157.824 (V) | mm |
| Number of Dots (HxV) | 1024 x RGB x 768 | dot |
| Pixel Pitch(HxV) | 0.2055 x 0.2055 | mm |
| Color Arrangement | RGB Stripe | – |
| Color Numbers | 256K/16.7 M | – |
| Outline Dimension (HxVxT) | 227.00 (H) x 175.80 (V) x 9.20 (D) | mm |
| NTSC (CIE1931) (Under C light) | 60 (Typ.) | % |
| White Point (x,y) (Under C light) | x:0.318,y: 0.366(Typ.) | – |
| Response Time | ≤30 | ms |
| Viewing Angle (Light On) (R/U/L/D) | CR≥10 @R/L/U/D(80°/80°/80°/80°) (Typ.) | – |
| Surface Treatment | HC | – |
| Contrast Ratio (Light On) | 1000:1 (Typ) | – |
| Operation Temperature | -30~80 | °C |
| Storage Temperature | -30~80 | °C |

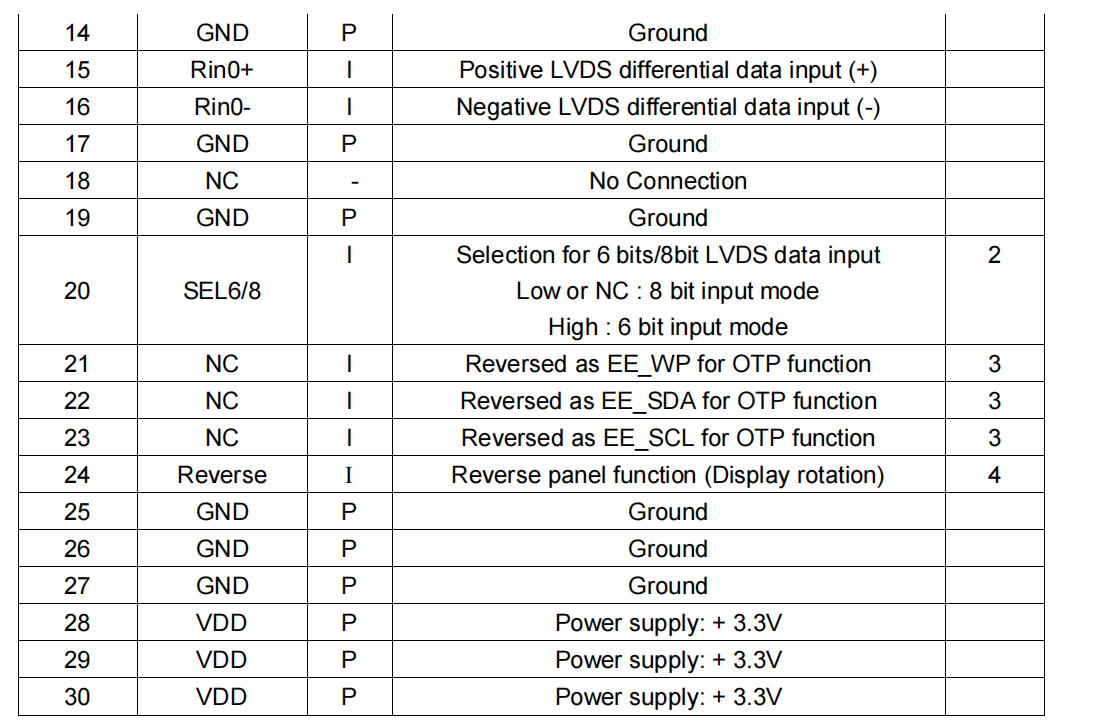

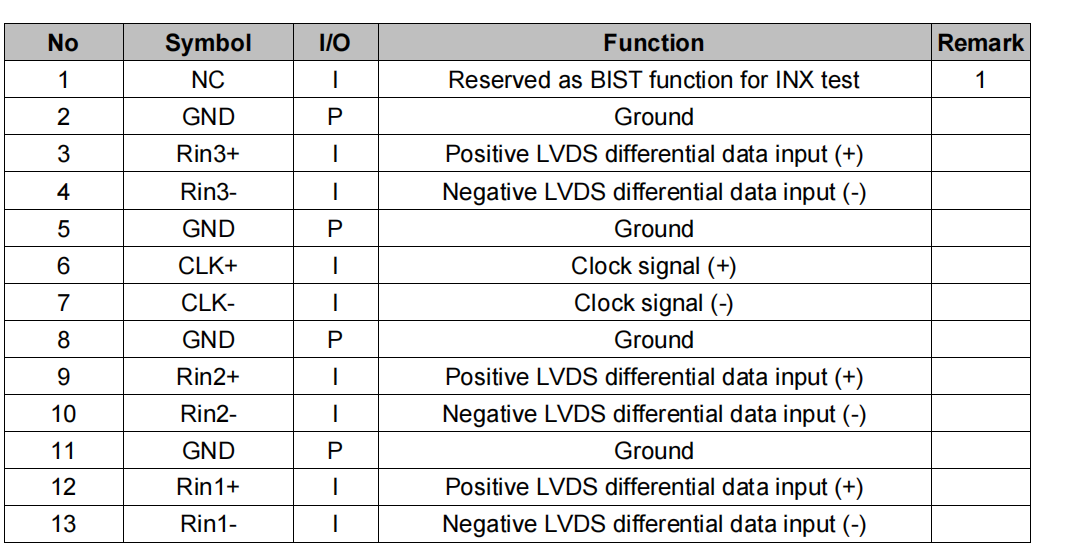

| Interface | LVDS | – |
| Module Luminance | min 500 | nits |
| Panel power consumption | TBD | W |
TFT LCD panel+polarizers+driver ICs+FPC +PCBA.
